JDZ10-12QB
VOLTAGE TRANSFORMER
12kV Indoor Single-Phase Epoxy Resin Type
Epoxy resin casting and double pole insulated fully
enclosed construction, is used indoor for measuring
voltage, electric energy and protective relaying in
the electric system with the frequency 50Hz or 60Hz
and highest voltage for equipment 12kV.
The product has the feature of high reliability, low
magnetism of core, large creepage distance of
external insulation and maintenance free etc
Technical Data
1、Installation site: indoor
2、Rated frequency: 50/60Hz
3、Load power factor: cosΦ=0.8 （lagging）
4、Technical standard accords with IEC 60044-2
(IEC 61869-1&3)
Specification
Type
Rated primary
voltage (kV)
Rated secondary voltage (kV)
Accuracy
classes combination
Rated output
(VA)
Thermal
limiting current
(VA)
Rated
insulation level(kV)
)
JDZ10-12Q(B )
11
0.11
0.2
25
500
12/28/75
0.5
50
1
100
0.11/0.11
0.2/0.2
15/15
300/300
0.2/0.5
15/30
0.11/0.22
0.2/6P(3P)
15/500
500
0.5/6P(3P)
30/500

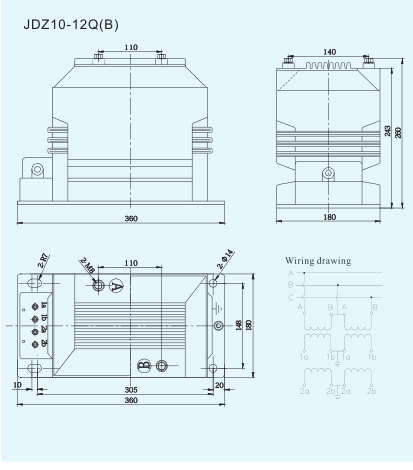

Outline
