JDZXW-36W2 voltage transformer adopts outdoor epoxy resin material casting and single pole insulated voltage transformer, is widely used for measuring current, electric energy and protective relaying in the electric system with the frequency 50Hz or 60Hz and highest voltage for equipment 36 kV (Up to ~40.5kV).
The iron core adopts advanced cold-rolled silicon steel sheet. High voltage outgoing line of primary winding was fetched out from top of the product; outgoing line of secondary winding was fetched out from transverse side of the product.
Main technical parameter
1. Rated primary voltage：30/√3kV or 33/√3kV or 34.5/√3kV or 35/√3kV etc
2. Rated secondary voltage：100/√3V or 110/√3V or 115/√3V or 120/√3V
3. Rated voltage of residual voltage windings： 100/ 3V or 110/ 3V or 115/ 3V or 120/ 3V
4. Technical standard accords with IEC 60044-2.2003 or IEEE etc
5. Other parameters pls see as follow:
|
Type |
Rated Primary Voltage (kV) |
Rated Secondary Voltage(kV) |
Accuracy classes combination |
Rated output (VA) |
Thermal limiting output (VA) |
Rated insulation level(kV) |
|
JDZXW-36W2 |
33/√3 34.5/√3 35/√3 |
0.1/√3 /0.1/3 0.11/√3 /0.11/3 |
0.2/6P(3P) |
40/100 |
1000 |
36/70/170 (40.5/95/200) |
|
0.5/6P(3P) |
80/100 |
|||||
|
1/6P(3P) |
150/100 |
|||||
|
0.1/√3 /0.1/√3 /0.1/3 0.11/√3/0.11/√3 /0.11/3 |
0.2/0.2/6P(3P) |
20/20/100 |
500 |
|||
|
0.2/0.5/6P(3P) |
20/30/100 |
|||||
|
0.5/0.5/6P(3P) |
40/40/100 |
|||||
|
33/ |
0.11/√3 /0.11/3 |
0.2/3P |
50/50 |
500 |
36/70/170 |
Remarks: Upon request we are glad to offer transformers according to other standards or with non-standard technical specs.

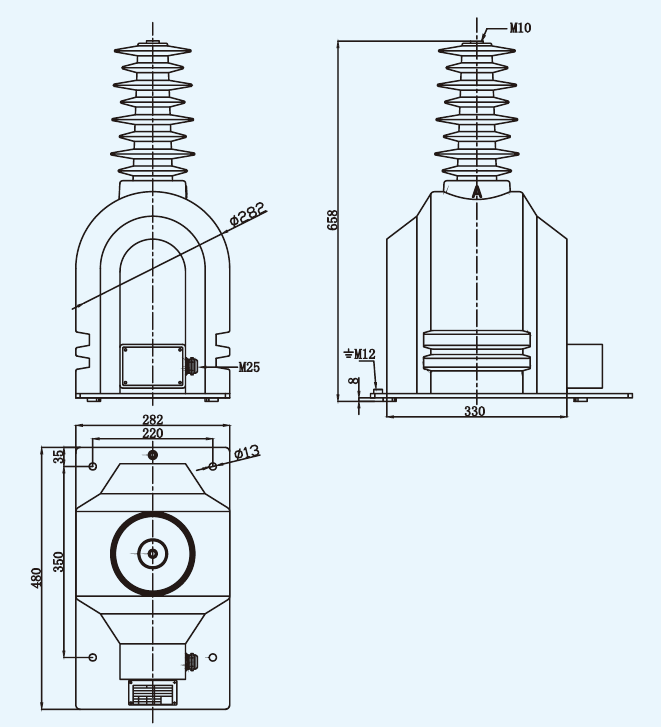

Outline drawing
