LZJC-12(G)
CURRENT TRANSFORMER
□ 12kV Indoor Single-Phase Epoxy Resin Type
Epoxy resin casting insulation and fully enclosed support
construction, encloses primary & secondary windings and
annular core in the epoxy resin casting body. The product has
groove to strengthen the external insulation. It can be installed
omni-directional due to light weight and withstand nastiness and
dampness. It is widely used for measuring current, electric
energy and relay protection in the electrical system with the rated
frequency 50Hz or 60Hz and highest voltage for equipment 12kV.
Specification
|
Rated transformer Ratio(A) |
Accuracy classes combination |
Rated output(VA) COSФ=0.8 |
FS |
ALF |
Rated short-time thermal current (kA/S) |
Rated dynamic current ( kA) |
||
|
Measuring |
Protective |
|||||||
|
0.2（S） |
0.5 |
10P |
||||||
|
5-200/5 |
0.2(S)/0.2(S) 0.2(S)/0.5 0.2(S)/10P 0.5/10P |
10 |
15 |
15 |
5 (10) |
10 |
75 I1n |
180 I1n |
|
300/5 |
20 |
50 |
||||||
|
400/5 |
30 |
75 |
||||||
|
500/5 |
30 |
75 |
||||||
|
600/5 |
40 |
80 |
||||||
|
800/5 |
40 |
80 |
||||||
|
1000/5 |
63 |
105 |
||||||

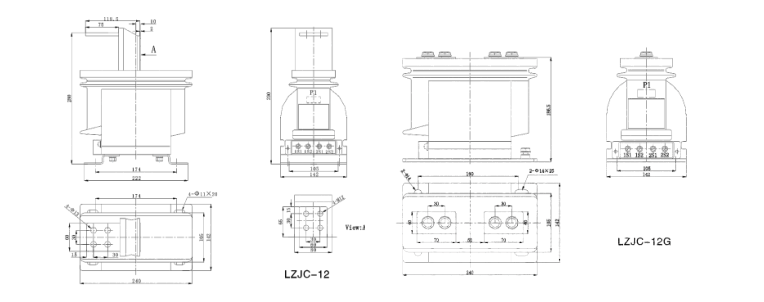

Outline
