JDZW16-12 voltage transformer, outdoor epoxy resin casting and full-closed construction, is widely used for measuring current, electric energy and protective relaying in the single-phase or three phase power system with the frequency 50Hz or 60Hz and highest voltage for equipment 12kV
Key Technical Data
A. Rated Frequency: 50-60Hz
B. Load power factor cosΦ=0.8 （lagging）
C. Installation Site outdoor
D Technical standard accords with IEC60044-2:2003 or IEC618691&3
|
Type |
Rated primary voltage （kV） |
Rated secondary voltage （kV） |
Accuracy classes combination |
Rated output (VA) |
Thermal limiting output (VA) |
Rated Insulation level (kV) |
|
JDZW16-12 |
11 |
0.1 0.11 |
0.2 |
30 |
500 |
12/28/75 12/28/95 |
|
0.5 |
50 |
|||||
|
1 |
80 |
|||||
|
0.1/0.1 0.11/0.11 |
0.2/0.2 |
15/15 |
500 |
|||
|
0.2/0.5 |
15/25 |
|||||
|
0.1/0.22 0.11/0.22 |
30/800 |
800 |
||||
|
0.5/6P(3P) |
50/800 |
|||||
|
JDZW16-12 |
11 |
0.11 |
5M |
200 |
250 |
12/28/95 |
|
0.22 |
5M |
200 |
500 |
Remarks: Upon request we are glad to offer transformers according to other technical specs.

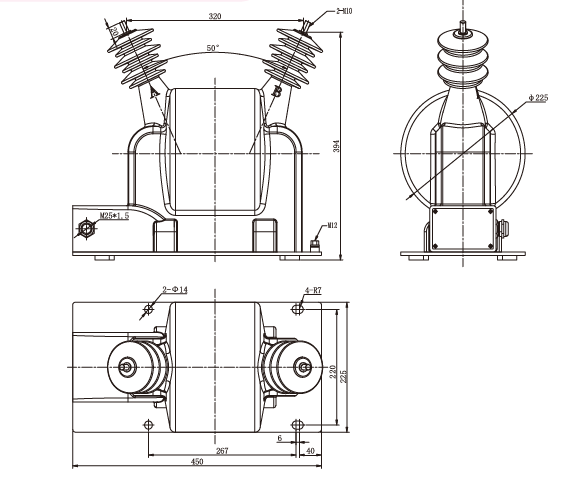

Outline Drawing
