Conduct the principle of capacitance voltage division, best performance compare to traditional electromagnetic voltage transformers, small volume, light weight, tight construction characters; utilizing fiber transmission, absolute electronic insulation. The products accord with standard IEC60044-8 , IEC61850-9,GB/T20840.8-2007, compatible with electronic metering, computer measuring protection devices. Custom design service provided.
Main technical parameter
1. Rated
primary voltage : 110/√3 kV
2. Rated digital output : 0x2D41(digits)
3. Accuracy for measuring winding : 0.2
4. Accuracy for protection winding : 3P
5. Rated
Frequency: 50Hz
6. Rated insulation level : 126/200/450kV
7. Ambient temperature : -25℃-50℃
8. Ambient humidity : ≤RH95%(25℃ )
9. Altitude : ≤ 2000m( Can
devise according customer’s requirement)
10. Installation site : outdoor

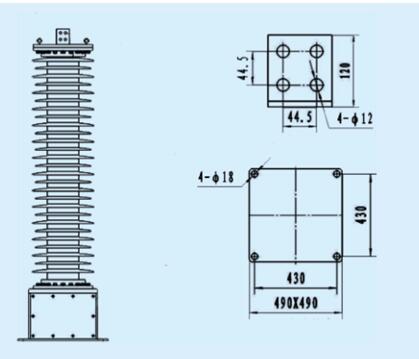

Outline drawing
