Outdoor epoxy resin casting and full-closed construction, is widely used for measuring current, electric energy and protective relaying in the single-phase or three phase power system with the frequency 50Hz or 60Hz and highest voltage for equipment 12kV.
Technical Data
1. Installation site Outdoor
2. Rated Frequency 50/60Hz
3. Burden power factor CosΦ=0.8（lagging）
4. Technical standard accords with IEC 61869-1:2007, IEC 61869-3:2011
Specification
Rated primary Voltage（KV）
Rated secondary
Voltage（KV）
Accuracy
classes combination
Rated
output（VA）
Thermal limiting Output （VA）
Rated Insulation level （KV）
10
11
0.1
0.11
0.2
0.5
30
60
800
12/28/75(IEC)
12/42/75(GB)
0.22
3
500
800
0.1/0.1 0.11/0.11
0.2/0.2
20/20
400/400
0.2/0.5
25/30
0.1/0.1/0.22
0.2/0.5/3
15/20/30
800
for power
supply
Note：Upon request we are glad to offer transformers according to other technical specs.

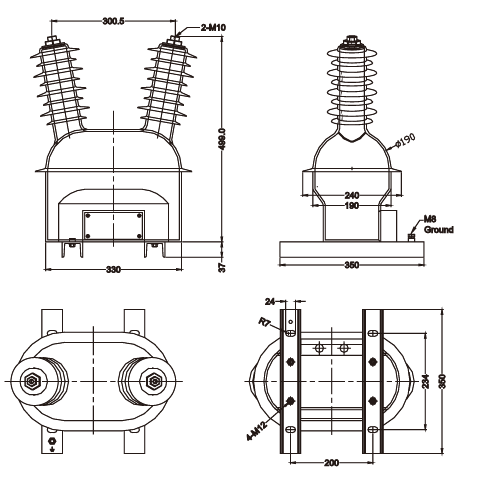

Outline Drawing
