LMZC
CURRENT TRANSFORMER
The secondary windings are full-enclosed in the flame retardant plastic shells,
primary bushing or cable can pass through the inner hole, bottom has installation
inserts for fixation. It is simple and shortcut, is suitable for measuring current,
signal collection and protective relaying in the medium voltage power system of
bushing or cable etc.
Technical Data
1、Rated secondary current: 5A、1A
2、Power frequency withstand voltage: 3kV
3、Rated frequency: 50/60Hz
4、Installation site: Indoor
5、Technical standard: IEC 60044-1
(IEC 61869-1&2)
Specification
LMZC1
|
Model |
LMZC1-12C |
LMZC1-12P |
LMZC2-12P |
||||||
|
Purpose |
Measuring current transformer |
Protective current transformer |
Double winding current transformer |
||||||
|
Rated Primary current |
Accuracy class and rated burden （VA） |
Accuracy class and rated burden （VA） |
Double winding accuracy class and rated burden （VA） |
||||||
|
0.2 |
0.5 |
1 |
10P10 |
10P5 |
0.5 |
1 |
10P10 |
10P5 |
|
|
75 |
|
|
|
|
1.5 |
|
|
|
|
|
100 |
|
2.5 |
1.5 |
|
2 |
|
|
|
|
|
200 |
|
5 |
|
2.5 |
2.5 |
|
3.75 |
1.5 |
2.5 |
|
300 |
2.5 |
5 |
|
2.5 |
3.75 |
2.5 |
2.5 |
2.5 |
|
|
400 |
5 |
10 |
|
3.75 |
|
5 |
7.5 |
3.75 |
|
|
500 |
5 |
10 |
|
5 |
|
5 |
10 |
5 |
|
|
600 |
5 |
10 |
|
5 |
|
5 |
10 |
5 |
|
|
800 |
5 |
10 |
|
5 |
|
5 |
10 |
5 |
|
LMZC2
|
Model |
LMZC2-12C |
LMZC2-12P |
LMZC2-12CP |
||||||
|
Purpose |
Measuring current transformer |
Protective current transformer |
Double winding current transformer |
||||||
|
Rated Primary current |
Accuracy class and rated burden （VA） |
Accuracy class and rated burden （VA） |
Double winding accuracy class and rated burden （VA） |
||||||
|
0.2 |
0.5 |
1 |
10P10 |
10P5 |
0.5 |
1 |
10P10 |
10P5 |
|
|
75 |
|
|
|
|
1.5 |
|
|
|
|
|
100 |
|
2.5 |
1.5 |
|
2 |
|
|
|
|
|
200 |
|
5 |
|
2.5 |
2.5 |
|
3.75 |
1.5 |
2.5 |
|
300 |
2.5 |
5 |
|
2.5 |
3.75 |
2.5 |
2.5 |
2.5 |
|
|
400 |
5 |
10 |
|
3.75 |
|
5 |
7.5 |
3.75 |
|
|
500 |
5 |
10 |
|
5 |
|
5 |
10 |
5 |
|
|
600 |
5 |
10 |
|
5 |
|
5 |
10 |
5 |
|
|
800 |
5 |
10 |
|
5 |
|
5 |
10 |
5 |
|

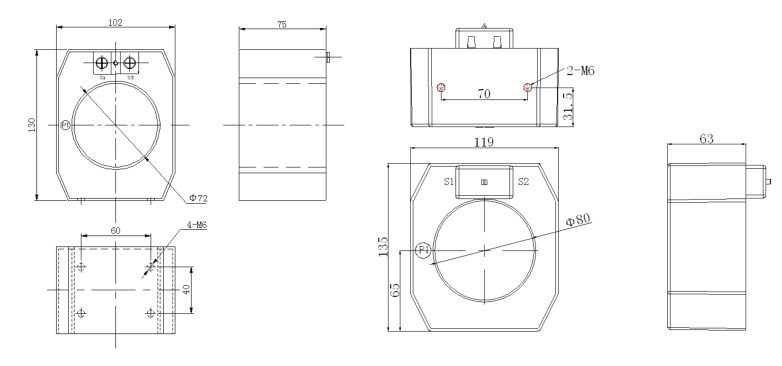

Outline
