LMZK
SPLIT CORE CURRENT TRANSFORMER
□ Ring Main Unit C-GIS Split Core Type
High quality epoxy resin poured into inflaming retarding PVC ring Doss hell
is adopted in two half cirque metal slug and secondary windings. It has
many advantages, including small size and cubage, light weight, and
dispense with maintenance. It is especially fit to be fixed on the
incoming/outgoing cables of the high-tension switchgear, and the two half
cirque of the current transformer encircle the split phase cable tightly and
uniformly. It has two configuration formats of single ratio and double ratios
and two Installation modes of plastic waistband and stainless steel
waistband, and it is applicable to all the 35 mm2-500mm2 and 12kV cables
Technical Data
1、Rated secondary current: 5A、1A
2、Power frequency withstand voltage: 3kV
3、Rated frequency: 50/60Hz
4、Installation site: Indoor
5、Technical standard: IEC 60044-1
(IEC 61869-1&2)
Specification
Type
LMZK1-11C
LMZK1-11P
LMZK1-11CP
Purpose
Measuring current
transformer
Protection current
transformer
Double winding current
transformer
Ratio
Accuracy class and rated
burden(VA)
Accuracy class and rated burden(VA)
Accuracy class and rated
burden(VA)
0.5
1
3
10P15
10P10
10P5
0.5
1
10P10
10P5
50/5
2.5
75/5
2.5
1.5
100/5
2.5
2.5
150/5
2.5
1.5
3.75
200/5
2.5
5
2.5
5
300/5
2.5
5
1.5
2.5
5
2.5
1.5
400/5
5
5
1.5
2.5
5
2.5
2.5
500/5
5
5
2.5
3.75
7.5
2.5
2.5
600/5
5
5
2.5
5
10
2.5
2.5

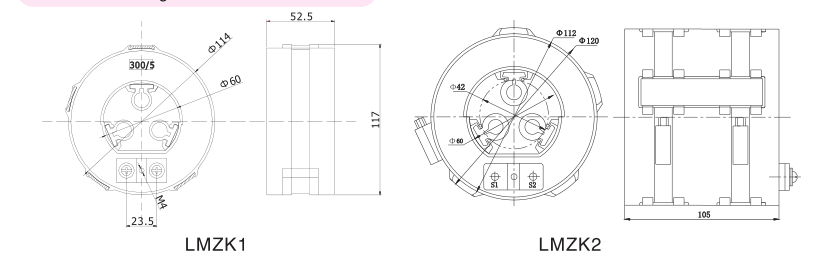

Outline
