JDZ11-36
VOLTAGE TRANSFORMER
□ 36kV Indoor Single-Phase Epoxy Resin Type
JDZ11-36 voltage transformer, is fully enclosed casting insulation structure,
the primary winding, secondary winding and the annular core all coating in the
epoxy resin casting, improve the filth and moisture resistance. The model adds
the umbrella skin product desigh and increase external insulation creepage
distance, is widely used indoor for measuring current, electric energy and
protective relaying in the isolated neutral system with the frequency 50-60Hz
and highest voltage for equipment 40.5 kV
Technical Data
1. Rated primary voltage： 33 kV or 34.5 kV or 35kV
2. Rated secondary voltage：100V,100/100V,100/220V
3. Rated voltage of residual voltage windings：100/ 3V 、110/ 3V、 115/ 3V、 120/ 3V
4. Burden power factor: cosΦ=0.8(lagging)
5. Standards: IEC60044-2.2003 or IEC61869-1&
Specification
Type
Rated
primary
voltage
(kV)
Rated
secondary voltage (kV)
Accuracy
classes combination
Rated output
(VA)
Thermal
limiting current
(VA)
Rated
insulation level(kV)
JDZ11-36
33
34.5
35
0.1
0.11
0.2
25
800
36/70/170
40.5/95/200
0.5
50
1
150
0.1/0.1
0.11/0.11
0.2/0.2
15/50
300/300
0.2/0.5
30/50
0.1/0.22
0.11/0.22
0.2/6P(3P)
15/500
800
0.5/6P(3P)
25/500

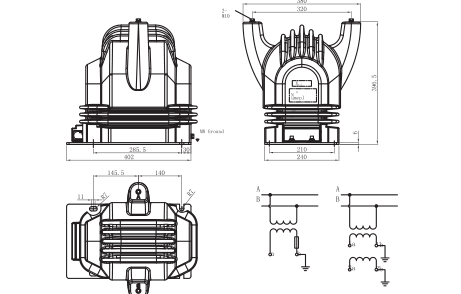

Outline
