JDZX10-17.5 、 JDZX10-24
VOLTAGE TRANSFORMER
□ 24kV Indoor Single-Phase Epoxy Resin Type
Used indoor single phase or three phase AC circuit for measuring
electric capacity, voltage and protective relaying with the frequency
of 50Hz or 60Hz and .
The product adopts epoxy resin casing full-closed structure with low
magnetism density and large creepage distance of external
insulation The product has high reliability and maintenance free.
Technical Data
1、Installation site indoor
2、Rated frequency 50/60Hz
3、Load power factor: cosΦ=0.8 （lagging）
4、Technical standard accords with IEC 60044-2
(IEC 61869-1&3)
Specification
|
Type |
Rated primary voltage (kV) |
Rated secondary voltage (kV) |
Accuracy classes combination |
Rated output (VA) |
Thermal limiting current (VA) |
Rated insulation level(kV) |
|
JDZX10-17.5 JDZX10-24 |
15/√3 22/√3
|
0.11/√3 |
0.2 |
25 |
500 |
17.5/38/95 24/50/125 |
|
0.5 |
50 |
|||||
|
1 |
100 |
|||||
|
0.11/0.11/√3/0.11/0.11/√3 |
0.2/6P |
15/50 |
400 |
|||
|
0.5/6P |
30/50 |

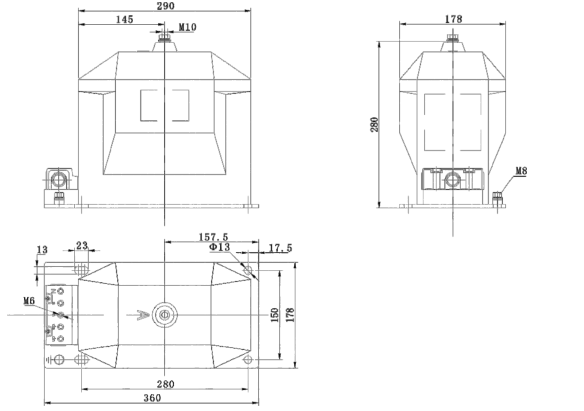

Outline
