JDZ10-12RJC 、 JDZ10-12RVJC 、 ZJ10-12RJC
VOLTAGE TRANSFORMER
□ 12kV Indoor Single-Phase Epoxy Resin Type
Epoxy resin casting, half insulation and fully enclosed
construction, is used indoor for measuring votage
, electric energy and protective relaying in the electric
system with the frequency 50Hz or 60Hz and highest voltage for
equipment 7.2 /12kV, Be suitable for three phase V connection.
Technical Data
1、Installation site indoor
2、Rated frequency 50/60Hz
3、Load power factor: cosΦ=0.8 （lagging）
4、Technical standard accords with IEC 60044-2
Specification
Type
Rated primary
Voltage
（kV）
Rated secondary
Voltage
（kV）
Accuracy classes
combination
Rated output
(VA)
Thermal limiting
Output
(VA)
Rated
Insulation level
(kV)
JDZ10-12R(V)JC
11
0.11
0.2
25
400
12/28/75
0.5
50
1
80
0.11/0.11
0.2/0.2
10/10
200/200
0.2/0.5
15/30
0.11/0.22
0.2/6P
15/500
500
0.5/6P
30/500

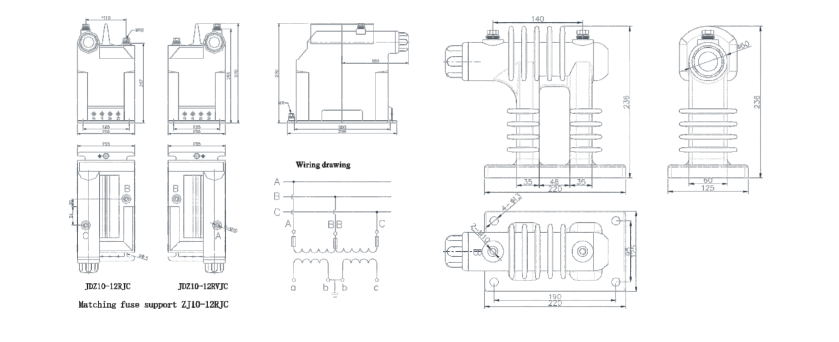

Outline
