JDZX10-12RJC
VOLTAGE TRANSFORMER
□ 12kV Indoor Single-Phase Epoxy Resin Type
Epoxy resin casting, half insulation and fully
enclosed construction, is used indoor for measuring
voltage, electric energy and protective relaying in
the electric system with the frequency 50Hz or 60Hz
and highest voltage for equipment 7.2 /12kV, Be
suitable for three phase V connection.
Technical Data
1、Installation site indoor
2、Rated frequency 50/60Hz
3、Load power factor: cosΦ=0.8 （lagging）
4、Technical standard accords with IEC 60044-2
(IEC 61869-1&3)
Specification
Type
Rated
primary
Voltage
（kV）
Rated
secondary
Voltage
（kV）
Accuracy
classes
combination
Rated
output (VA)
Thermal limiting
Output
(VA)
Rated
Insulation level
(kV)
JDZX10-12RJC
11/√3
0.1/√3
0.2
15
400
12/28/75
0.5
30
1
80
0.1/√3/0.1/3
0.2/6P
15/50
300
0.5/6P
30/50

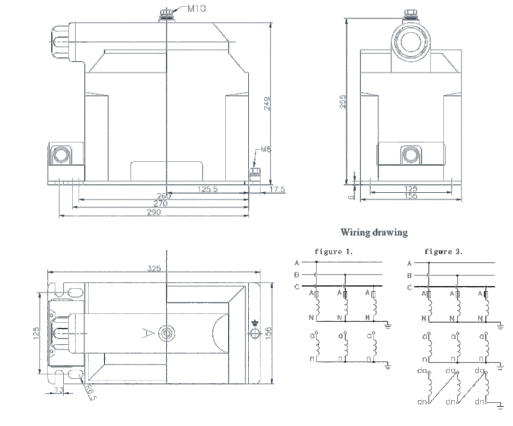

Outline
