JDZ10-12R
VOLTAGE TRANSFORMER
□ 12kV Indoor Single-Phase Epoxy Resin Type
Epoxy resin casting and full-enclosed construction, is
widely used for measuring voltage, electric energy and
protective relaying in the single-phase or three phase
power system with the frequency 50Hz or 60Hz and
highest voltage for equipement 12kV.
The core adopts advanced cold-rolled silicon steel
sheet. High voltage outgoing line of primary winding was
fetched out from top of the product; outgoing line of
secondary winding was fetched out from transverse side
of the product. The product has the feature of high
reliability, low magnetism of core and maintenance free
etc.
Technical Data
1、Installation site indoor
2、Rated frequency 50/60Hz
3、Load power factor: cosΦ=0.8 （lagging）
4、Technical standard accords with IEC 60044-2
(IEC 61869-1&3)
Specification
Type
Rated primary
voltage (kV)
Rated secondary voltage (kV)
Accuracy
classes combination
Rated output
(VA)
Thermal
limiting current
(VA)
Rated
insulation level(kV)
JDZ10-11R
11
0.11
0.2
25
600
12/28/75
0.5
50
1
150
0.11/0.11
0.2/0.2
15/15
300/300
0.2/0.5
15/30
0.5/0.5
30/30

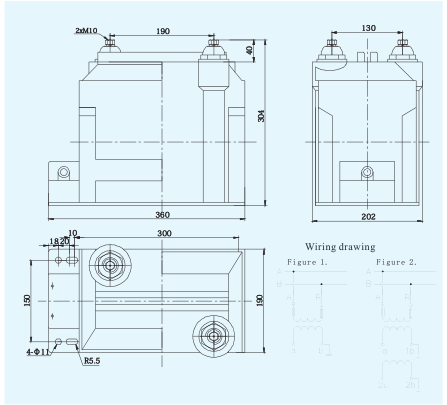

Outline
