JDZX15-12
VOLTAGE TRANSFORMER
□ 12kV Indoor Single-Phase Epoxy Resin Type
Used indoor single phase or three phase AC
circuit for measuring electric capacity, voltage
and protective relaying with the frequency of
50Hz or 60Hz and rated voltage 11kV.
The product adopts epoxy resin casting full-
closed structure with low magnetism density and
large creepage distance of external insulation
The product has high reliability and maintenance
free .
Technical Data
1、Installation site indoor
2、Rated frequency 50/60Hz
3、Load power factor: cosΦ=0.8 （lagging）
4、Technical standard accords with IEC 60044-2
(IEC 61869-1&3)
Specification
Type
Rated primary
voltage (kV)
Rated secondary voltage (kV)
Accuracy
classes combination
Rated output
(VA)
Thermal limiting current
(VA)
Rated insulation level(kV)
JDZX15-12
11/√3
011/√3
0.2
25
400
12/28/75
0.5
50
1
80
0.11/√3/0.11/3
0.2/6P(3P)
15/100
300
0.5/6P(3P)
30/100
1/6P
60/100

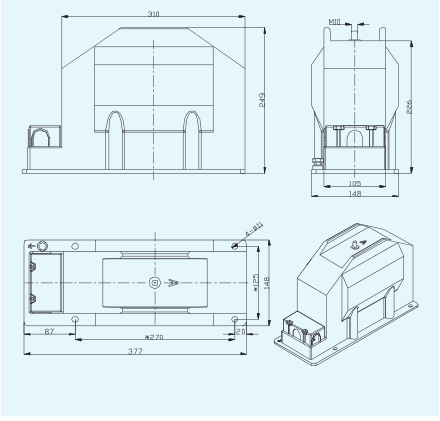

Outline
