JDZ11-12A
VOLTAGE TRANSFORMER
□ 12kV Indoor Single-Phase Epoxy Resin Typ
Epoxy resin casting and fully enclosed construction, is
used indoor for measuring , electric energy
and protective relaying the electric system with the
frequency 50Hz or 60Hz and highest voltage for
equipment 12kV.
The product has the feature of high reliability, low
magnetism of core, large creepage distance of
external insulation and maintenance free etc
Technical Data
1、Installation site indoor
2、Rated frequency 50/60Hz
3、Load power factor: cosΦ=0.8 （lagging）
4、Technical standard accords with IEC 60044-2
Specification
Type
Rated
primary
voltage (kV)
Rated secondary
voltage (kV)
Accuracy
classes combination
Rated output
(VA)
Thermal
limiting current
(VA)
Rated
insulation level(kV)
JDZ11-12A
11
0.11
0.2
25
600
12/28/75
0.5
50
1
150
0.11/0.11
0.2/0.2
15/15
300/300
0.2/0.5
15/30
0.11/0.22
0.2/6P(3P)
25/800
600
0.5/6P(3P)
50/800

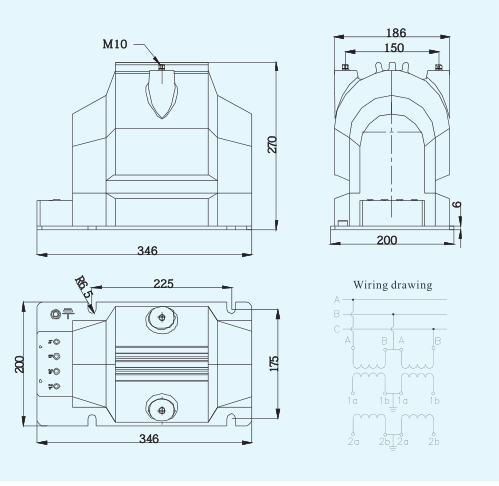

Outline
