JDZ10-12V12G
VOLTAGE TRANSFORMER
□ 12kV Indoor Single-Phase Epoxy Resin Typ
Epoxy resin casting and double pole insulated fully enclosed
construction, is used indoor for measuring , electric
energy and protective relaying in the electric system with the
frequency 50Hz or 60Hz and highest voltage for equipment
12kV.
The product has the feature of high reliability, low magnetism of
core, large creepage distance of external insulation and
maintenance free etc
Technical Data
1、Installation site indoor
2、Rated frequency 50/60Hz
3、Load power factor: cosΦ=0.8 （lagging）
4、Technical standard accords with IEC 60044-2
(IEC 61869-1&3)
Specification
Type
Rated primary voltage(kV)
Rated secondary voltage(kV)
Accuracy class or accuracy classes
combination
Rated output
(VA)
Thermal limiting current(VA)
Rated insulation level
JDZ10-12V12G
11
0.11
0.2
15
400
12/28/75
0.5
50
1
80
0.11/0.11
0.2/0.2
10/10
200/200
0.2/0.5
15/30
0.11/0.22
0.2/6P
15/500
500
0.5/6P
30/500

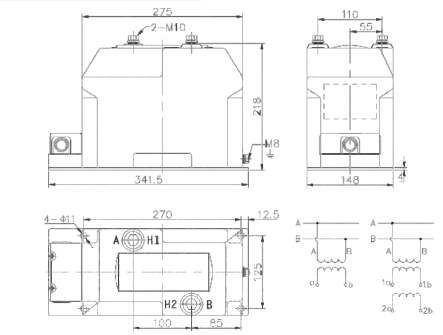

Outline
