Technical Data:
1.Outdoor use
2.Cast-resin insulated
3.Frequency 50Hz or 60Hz
4.Standards: IEC 60044-2 IEC 61869-1&3
Parameters:
No.
|
Items
|
Unit
|
Index
|
Remarks
|
1
|
Highest
Voltage of Equipment
|
kV
|
40.5,
36
|
|
2
|
BIL
|
kV
|
GB:40.5/95/200, IEC:36/70/170
|
|
3
|
Rated
Primary Voltage
|
V
|
35400/√3
|
|
4
|
Rated
Secondary Voltage
|
V
|
100/√3,
100, 120
|
|
Remarks
|
Standards: GB20840.1-2010 GB20840.3-2013 GB20840.2-2014
IEC61869-1:2007
IEC61869-2:2012 IEC61869-3:2011
|
Application:
Use for highest voltage for equipments no more than 40.5kV, for current/voltage measurement in power system.
Features:
1.Use high properties iron core to meet high accuracy, big burden etc.
2.Use epoxy resin cast insulation structure to improve anti-pollution, anti-moisture etc.
3.Use full-sealed cast insulation type.

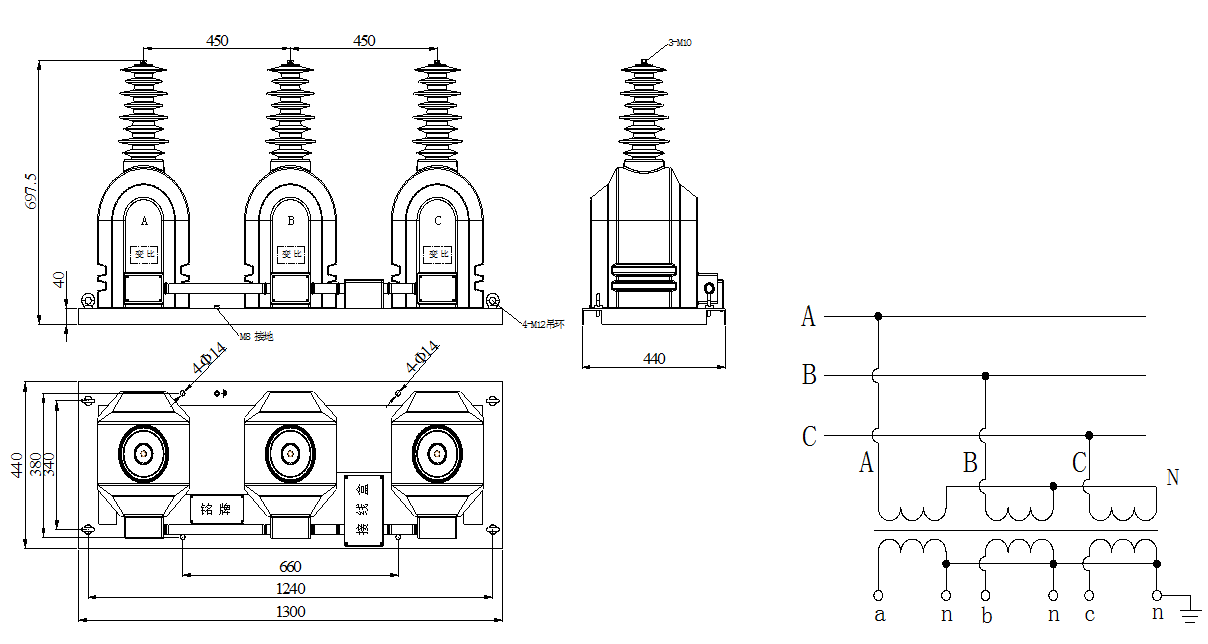

Drawing and Wiring:
Parameters not only limited as chart. We offer customized CT&VT as your requirements.
