JDZ16-36RPC voltage transformer, is fully enclosed casting insulation structure, the primary winding, secondary winding and the annular core all coating in the epoxy resin casting, improve the filth and moisture resistance. The whole structure of product is shielding type, is widely used indoor for measuring current, electric energy and protective relaying in the isolated neutral system with the frequency 50-60Hz and highest voltage for equipment 40.5 kV.
Main technical parameter
1. Rated primary voltage：33 kV or 34.5 kV or 35kV
2. Rated secondary voltage：100V,100/100V,100/220V
3. Rated voltage of residual voltage windings：100/ 3V 、110/ 3V、 115/ 3V、 120/ 3V
4. Burden power factor: cosΦ=0.8(lagging)
5. Standards: IEC60044-2.2003 or IEC61869-1&3
Other technical parameters pls see as follow:
|
Type |
Rated primary voltage (kV) |
Rated secondary voltage (kV) |
Accuracy classes combination |
Rated output (VA) |
Thermal limiting current (VA) |
Rated insulation level(kV) |
|
JDZ16-36RPC |
33 34.5 35 |
0.1 |
0.2 |
40 |
800 |
36/70/170 40.5/95/200 |
|
0.5 |
80 |
|||||
|
1 |
100 |
|||||
|
0.1/0.1 |
0.2/0.2 |
20/20 |
300/300 |
|||
|
0.2/0.5 |
20/30 |
|||||
|
0.1/0.22 |
0.2/6P(3P) |
50/500 |
300/800 |
|||
|
0.5/6P(3P) |
50/500 |
Remarks: Upon request we are glad to offer transformers according to other standards or with non-standard technical specs.

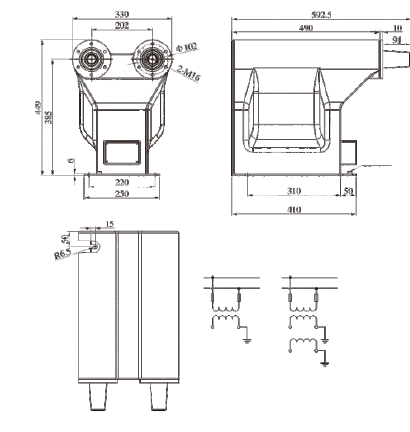

Outline drawing
