36kV Outdoor Three-Phase Epoxy Resin Type
This three phase consists of three semi-insulation VTs of Y-Y wiring. Secondary leads in junction box is easy for wiring and testing. Use epoxy resin insulation stunt structure for outdoor installation. Applicable for highest voltage for equipments no more than 40.5kV for metering/measuring measurement in power system.
Technical Data:
1.Outdoor use
2.Cast-resin insulated
3.Frequency 50Hz or 60Hz
4.Standards: IEC 60044-2 IEC 61869-1&3
Parameters:
|
No. |
Items |
Unit |
Index |
Remarks |
|
1 |
Highest Voltage of Equipment |
kV |
40.5, 36 |
|
|
2 |
BIL |
kV |
GB:40.5/95/200, IEC36/70/170 |
|
|
3 |
Rated Primary Voltage |
V |
35400/√3 |
|
|
4 |
Rated Secondary Voltage |
V |
100/√3, 100, 120 |
|
|
5 |
Rated Primary Current |
A |
5-1000 |
|
|
6 |
Rated Secondary Current |
A |
1 or 5 |
|
|
Remarks |
Standards: GB20840.1-2010 GB20840.3-2013 GB20840.2-2014 IEC61869-1:2007 IEC61869-2:2012 IEC61869-3:2011 |
|||
II. Application:
Use for highest voltage for equipments no more than 40.5kV, for current/voltage measurement in power system.
III. Features:
3.1 Use high properties iron core to meet high accuracy, big burden etc.
3.2 Use epoxy resin cast insulation structure to improve anti-pollution, anti-moisture etc.
3.3 Use full-sealed cast insulation type
3.4 Outdoor installation
IV. Technical Parameters:
|
Model |
Voltage Ratio(kV) |
Accuracy Class |
Rated Burden(VA) |
Current Ratio(A) |
Accuracy Class |
Rated Burden(VA) |
|
JLDZXW1-36 |
35.4/√3/0.12 35.4/√3/0.1 35.4/√3/0.1/√3 |
0.2 0.5 |
25 50 |
20-40/5 |
0.2S 0.5S |
12.5 |
|
50-100/5 |
||||||
|
… |
||||||
|
400-800 |
||||||
|
500-1000 |

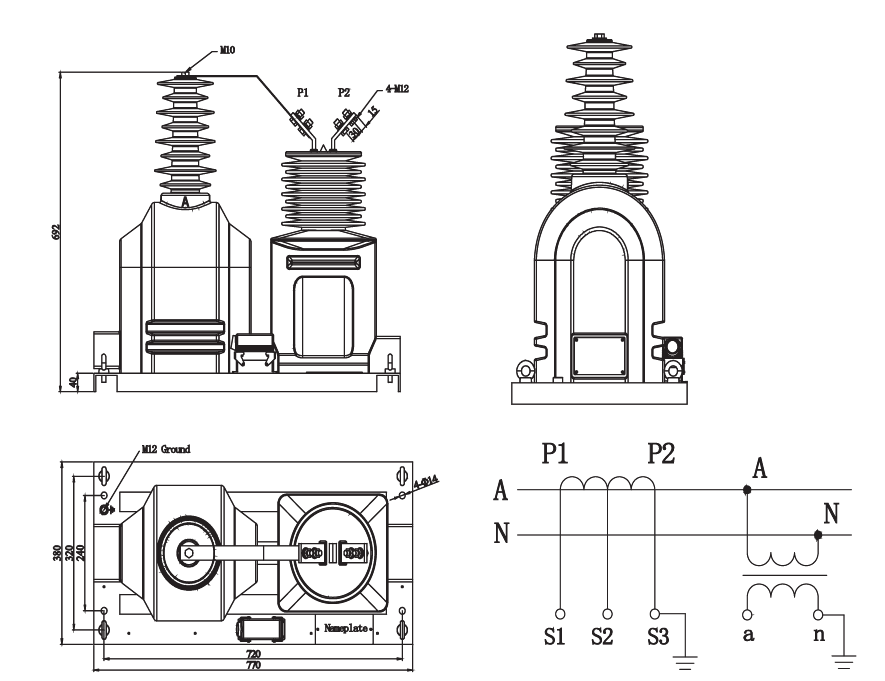

Outline Drawing:
