OUTDOOR COMBINED TRANSFORMER JLDZXW2-24
24Kv Outdoor Single-Phase Epoxy Resin Type
This single phase combined CT&VT consist of one semi-insulation VT and one CT,VT connected with CT terminal P1,CT series connected with phase A(B,C).Secondary leads in junction box is easy for wiring and testing. Use epoxy resin insulation stunt structure for outdoor installation. Applicable for highest voltage for equipments no more than 24kV for current/voltage measurement in power system.
Features:
1.use high properties iron core to meet high accuracy,big burden etc.
2.use epoxy resin cast insulation structure to improve anti-pollution,anti-moisture etc.
3.use full-sealed cast insulation type.
Specification:
|
Model |
Rated Voltage Ratio (kV) |
Accuracy Class |
Rated Output (VA) |
Rated Current Ratio (A) |
Accuracy Class |
Rated output (VA) |
|
JLDZXW2-24 |
20/√3/0.1/√3 20/√3/0.1 20/√3/0.12 |
0.2 0.5 |
20 50 |
20-40/5 |
0.2S 0.5S |
12.5 |
Note:
Upon request we are glad to offer transformers accordign to other technical specs.
Application:
Use for highest voltage for equipments no more than 17.5kV,for current/voltage measurement in power system.

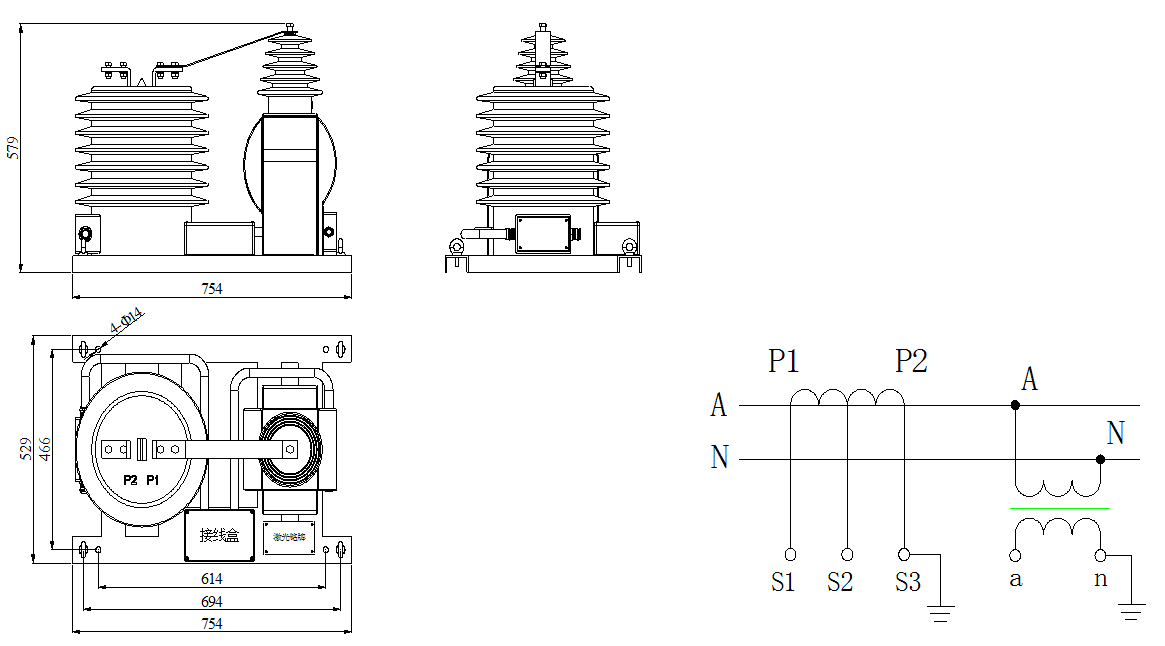

Drawing and Wiring:
