BH-0.72Ⅱ Current Transformer adopts high quality PC materials, full-enclosed construction,
rectangle hole with only one turn can mainly pass busbar (Max 6pcs),be used for controlling,
protection and measure.
P1,P2 Primary terminals,S1,S2 secondary terminals.
P1&S1 same as P2,S2(Subtractive polarity)

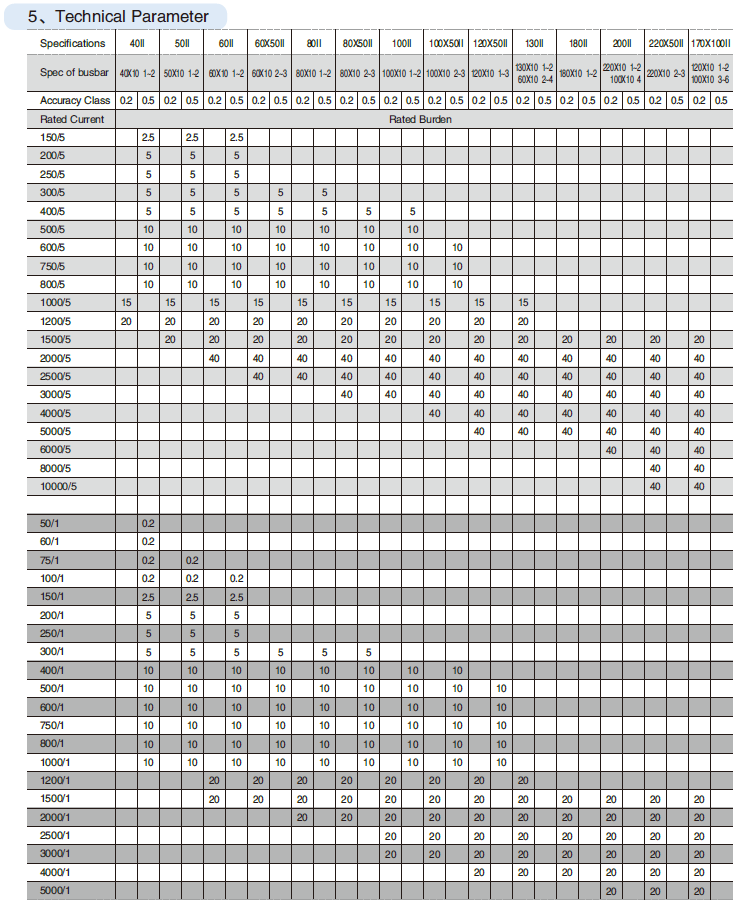

Technical Parameter
1) Rated Primary Current: 50-10000A; Rated Secondary Current:5A,1A
2).Rated voltage: AC 660V
3).Rated Frequency:50-60Hz
4).Ambient temperature:-30℃-+55℃。
5).Altitude:≤3000m
6).Power frequency withstand voltage:3000V/1min,50Hz(Between Cover and Secondary winding)
