LMR-0.72 Current transformer is used indoor with rated voltage below 0.66kV,it is widely used for measuring current, electric energy and protective relaying in the power system with the rated frequency 50Hz,epoxy resin casting current transformer adopts fixing busbar installation.
Technical Date
1. Rated secondary current:5A、1A
2. Power frequency withstand voltage: 3kV.
3. Rated frequency: 50/60Hz
4. Installation site: indoor
5. Standards: IEC60044-1.2003 /GB1208-2006
Specification
|
LMR（45-200）-0.66 Rated current ratio (A) |
Rated output(VA) |
Np |
|||
|
0.5 |
0.5S |
0.2 |
0.2S |
1 |
|
|
100/5 |
5 |
5 |
2.5 |
2.5 |
1 |
|
200/5 |
5 |
5 |
2.5 |
2.5 |
1 |
|
300/5 |
5 |
5 |
2.5 |
2.5 |
1 |
|
400/5 |
2 |
2 |
2.5 |
2.5 |
1 |
|
500/5 |
5 |
5 |
2.5 |
2.5 |
1 |
|
600/5 |
5 |
5 |
2.5 |
2.5 |
1 |
|
800/5 |
5 |
5 |
2.5 |
2.5 |
1 |
|
1000-2000/5 |
10 |
10 |
10 |
10 |
10 |
|
2000-4000/5 |
20 |
20 |
20 |
20 |
20 |
|
4000-8000/5 |
30 |
30 |
30 |
30 |
30 |

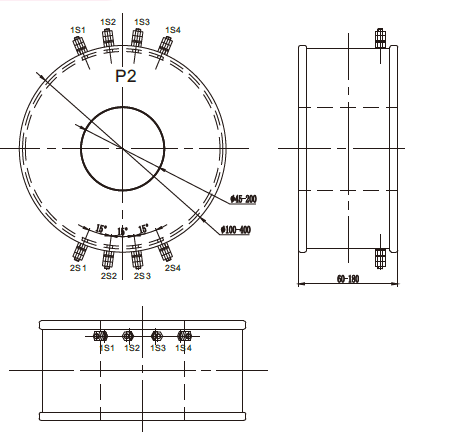

Outline drawing
