JDZ10-12QC
VOLTAGE TRANSFORMER
12kV Indoor Single-Phase Epoxy Resin Type
Epoxy resin casting and double pole insulated
fully enclosed construction, is used indoor for
measuring , electric energy and protective
relaying in the electric system with the frequency
50Hz or 60Hz and highest voltage for equipment
7.2/12kV.
The product has the feature of high reliability, low
magnetism of core, large creepage distance of
external insulation and maintenance free etc
Technical Data
1、Installation site: indoor
2、Rated frequency: 50/60Hz
3、Load power factor: cosΦ=0.8 （lagging）
4、Technical standard accords with IEC 60044-2
(IEC 61869-1&3)
Specification
Type
Rated primary
voltage (kV)
Rated secondary voltage (kV)
Accuracy classes combination
Rated output
(VA)
Thermal limiting current
(VA)
Rated insulation level(kV)
JDZ10-12Q(C)
11
0.11
0.2
25
500
12/28/75
0.5
50
1
100
6P
500
0.11/0.11
0.2/0.2
15/15
300/300
0.2/0.5
15/30
0.11/0.22
0.2/6P(3P)
15/500
500
0.5/6P(3P)
30/500

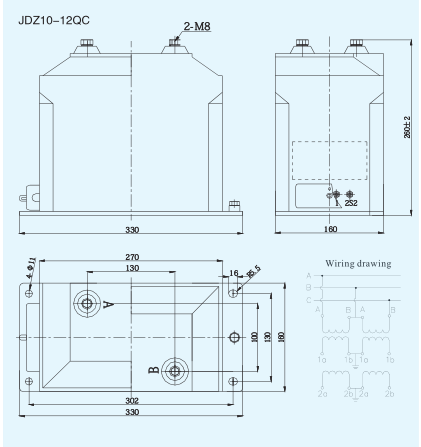

Outline
