JDZ9-12A、JDZ9-12
VOLTAGE TRANSFORMER
12kV Indoor Single-Phase Epoxy Resin Type
Epoxy resin casting and double pole insulated VT , is used indoor
switch cabinet for measuring voltage, electric energy and
protective relaying in single-phase or three-phase AC circuit with
the frequency 50Hz or 60Hz and highest voltage for equipement
12kV.
The product has the feature of high reliability, low magnetism of
core and maintenance free etc.
Technical Data
1、Installation site: indoor
2、Rated frequency: 50/60Hz
3、Load power factor: cosΦ=0.8 （lagging）
4、Technical standard accords with IEC 60044-2
(IEC 61869-1&3)
Specification
|
Type |
Rated primary voltage (kV) |
Rated secondary voltage (kV) |
Accuracy classes combination |
Rated output (VA) |
Thermal limiting current (VA) |
Rated insulation level(kV) |
|
JDZ9-12A JDZ9-12B |
10 11 |
0.1 0.11 |
0.2 |
50 |
600 |
12/28/75 |
|
0.5 |
100 |
|||||
|
1 |
150 |
|||||
|
0.1/0.1 0.11/0.11 |
0.2/0.2 |
25/25 |
300/300 |
|||
|
0.2/0.5 |
25/50 |
|||||
|
0.1/.022 0.11/0.22 |
0.2/6P(3P) |
25/1000 |
5000 |
|||
|
0.5/6P(3P) |
50/1000 |

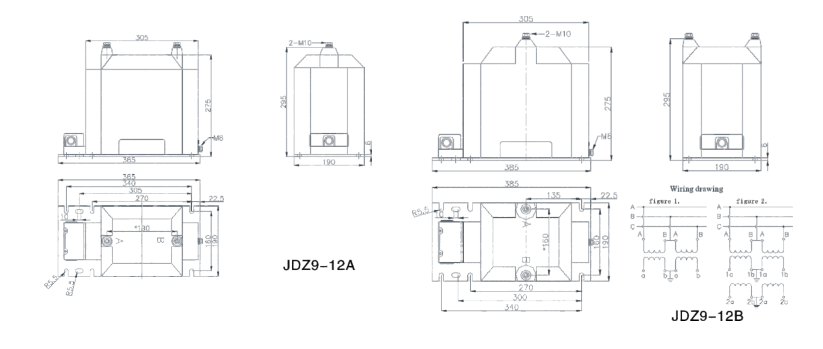

Outline
