JDZ-12Q、JDZJ-12Q
VOLTAGE TRANSFORMER
12kV Indoor Single-Phase Epoxy Resin Type
Epoxy resin casting and double pole insulated VT
, is used indoor switch cabinet for measuring
voltage, electric energy and protective relaying in
single-phase or three-phase AC circuit with the
frequency 50Hz or 60Hz and highest voltage for
equipement 12kV.
The product has the feature of high reliability, low
magnetism of core and maintenance free etc
1、Installation site: indoor
2、Rated frequency: 50/60Hz
3、Load power factor: cosΦ=0.8 （lagging）
4、Technical standard accords with IEC 60044-2
(IEC 61869-1&3)
Specification
|
Type |
Rated primary voltage (kV) |
Rated secondary voltage (kV) |
Accuracy classes combination |
Rated output (VA) |
Thermal limiting current (VA) |
Rated insulation level(kV) |
|
JDZ-12Q |
11 |
0.11 |
0.2 |
15 |
500 |
12/28/75 |
|
0.5 |
30 |
|||||
|
1 |
60 |
|||||
|
0.11/0.11 |
0.2/0.2 |
10/10 |
300/300 |
|||
|
0.2/0.5 |
10/20 |
|||||
|
0.11/0.22 |
0.2/6P(3P) |
15/300 |
500 |
|||
|
0.5/6P(3P) |
30/300 |
|||||
|
JDZJ-12Q |
11/√3 |
0.11/√3/0.11/3 |
0.2/6P(3P) |
15/50 |
500 |
12/28/75 |
|
0.5/6P(3P) |
30/50 |
|||||
|
1/6P(3P) |
60/50 |

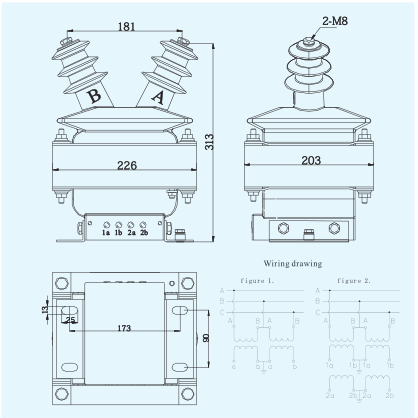

Outline
