LZXW-0.72
CURRENT TRANSFORMER
□ Zero -Sequence Current transformer
Epoxy resin vacuum casting,they have good
electrical mechanism performance property,damp
proof and dirt proof ability. The shape is beautiful
and it is easy to be installed
Technical Data
1、Rated secondary current: 5A,1A
2、Power frequency withstand voltage: 3kV
3、Rated frequency: 50/60Hz
4、Installation site: Indoor
5、Technical standard: IEC 60044-1
(IEC 61869-1&2
Specification
Type
Ratio(A)
Accuracy class
Rated output(VA)
LZXW3-0.72/370*450
LZXW2-0.72/400*500
50/1
10P10
1
50/5
10P10
0.5
100/1
10P10
2
100/5
10P10
1
150/1
10P10
2
300/5
10P10
1
500/1
5P10
10
600/5
10P10
5
800/5
0.5
15

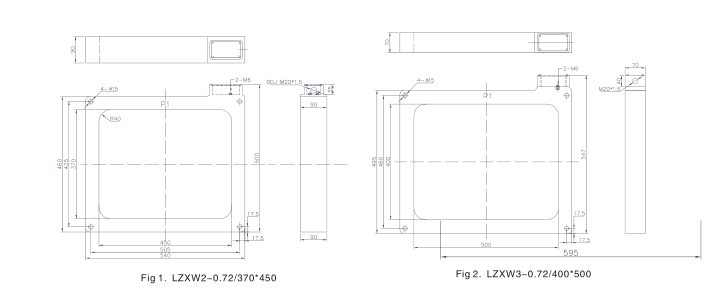

Outline
