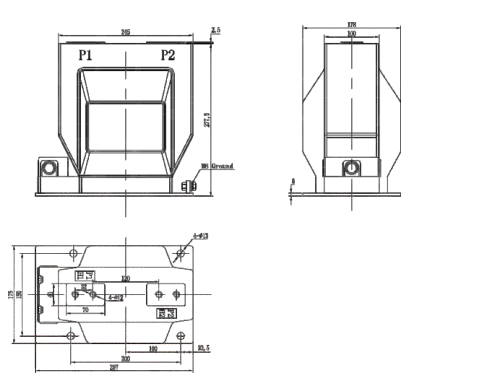

LZZBJ10-24
CURRENT TRANSFORMER
□ 24kV Indoor Single-Phase Epoxy Resin Type
Epoxy resin casting insulation and fully enclosed support construction,
encloses primary & secondary windings and annular core in the epoxy
resin casting body. The product has the feature of light weight,
omnidirectional installation, withstanding nastiness and dampness. It
is widely used for measuring current, electric energy and protective
relaying in the electrical system with the rated frequency 50- 60Hz and
highest voltage for equipment 24 k
Technical Data
1、Rated insulation level: 24/50/125kV
2、Rated frequency: 50/60Hz
3、Installation site: Indoor
4、Technical standard: IEC 60044-1 & (IEC61869-1&2)
Specification
|
Rated transformation ratio(A) |
Accuary classes combination |
Rated output （VA） |
(ALF) |
(FS) |
Short-time thermal current Ith(kA/S) |
Rated dynamic current Idyn(kA) |
||
|
Measuring |
Protective |
|||||||
|
0.2(S) |
0.5 |
10P |
||||||
|
15/5 …… 200/5 |
0.2(S)/0.2(S) 0.2(S)/0.5 0.5/0.5 0.2(S)/10P 0.5/10P
|
10 |
15 |
10
15
|
10
|
5 (10) |
100I1n |
250I1n |
|
300/5 |
25 |
63 |
||||||
|
400/5 |
31.5 |
80 |
||||||
|
500/5 |
40 |
100 |
||||||
|
600/5 |
40 |
100 |
||||||
|
800/5 |
63 |
130 |
||||||
|
1000/5 |
63 |
130 |
||||||
|
1500/5 |
80 |
160 |
||||||
