JDZX10-36 voltage transformer, epoxy resin casting and single pole insulated VT, is widely used indoor for measuring current, electric energy and protective relaying in the isolated neutral system with the frequency 50-60Hz and highest voltage for equipment 36 kV.
Technical parameter
1. Rated primary voltage： 33/kV or 34.5/kV or 35/√3
kV etc.
2. Rated secondary voltage：100/√3V、110/√3V 、 115/√3V、 120/√3V
3. Rated voltage of residual voltage windings：100/ 3V 、110/ 3V、 115/ 3V、 120/ 3V
4. Burden power factor: cosΦ=0.8(lagging)
5. Standards: IEC60044-2.2003 Instrument transformers-Part2: Inductive Voltage transformers
Other technical parameters pls see as follow:
|
Type |
Rated primary voltage (kV) |
Rated secondary voltage (kV) |
Accuracy classes combination |
Rated output (VA) |
Thermal limiting current (VA) |
Rated insulation level(kV) |
|
JDZX10-36 |
33/√3 34.5/√3 35/√3 |
0.1/√3 0.11/√3 0.12/√3 |
0.2 |
25 |
600 |
36/70/170 |
|
0.5 |
50 |
|||||
|
1 |
100 |
|||||
|
0.1/√3/0.1/3 0.11/√30.11/3 0.12/√3/0.12/3
|
0.2/6P(3P) |
20/50 |
600 |
|||
|
0.5/6P(3P) |
50/50 |
|||||
|
1/6P(3P) |
80/50 |
Remarks: Upon request we are glad to offer transformers according to other standards or with non-standard technical specs.

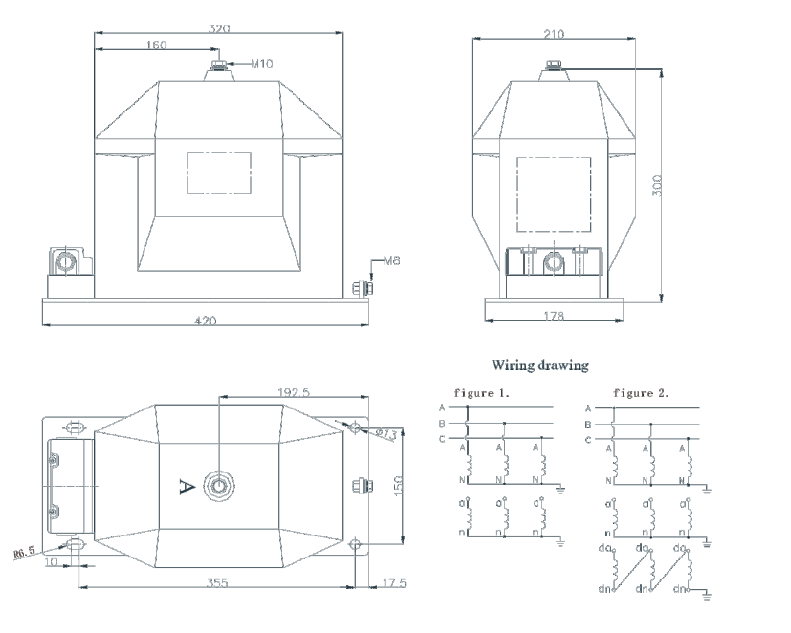

Outline drawing
